PA12 CF Support

A special break-away support material designed for PA12 CF composite filaments.

Raise3D Industrial PA12 CF Support Filament is a break-away support material specially developed for FFF printing process with carbon fiber reinforced PA filaments. This support material has broad compatibility with many high-performance carbon fiber reinforced composite filaments and is more cost-effective when compared with water-soluble support material.

  • Cost effective
  • Easy and fast removal with tools or hands
  • No special treatments required
  • Broad compatibility



Compatibility

Printer: Raise3D E2CF/ Raise3D RMF500

Filament: Raise3D Industrial PA12 CF+ Filament/ Other fiber reinforced filament based on PA

Please note, carbon fiber reinforced filament is abrasive and can wear out brass nozzles quickly. It is suggested to print carbon fiber filament with hardened nozzle. It is suggested to use Raise3D E2CF Printer.

Raise3D Industrial PA12 CF Support FilamentRaise3D Industrial PA12 CF Support Filament

Order Now

Raise3D Industrial PA12 CF Support Filament Applications



Applications

  • Support material for PA12 CF
  • For large overhangs and cavities
  • Easy to remove and break-away
  • Smooth and clean support interface

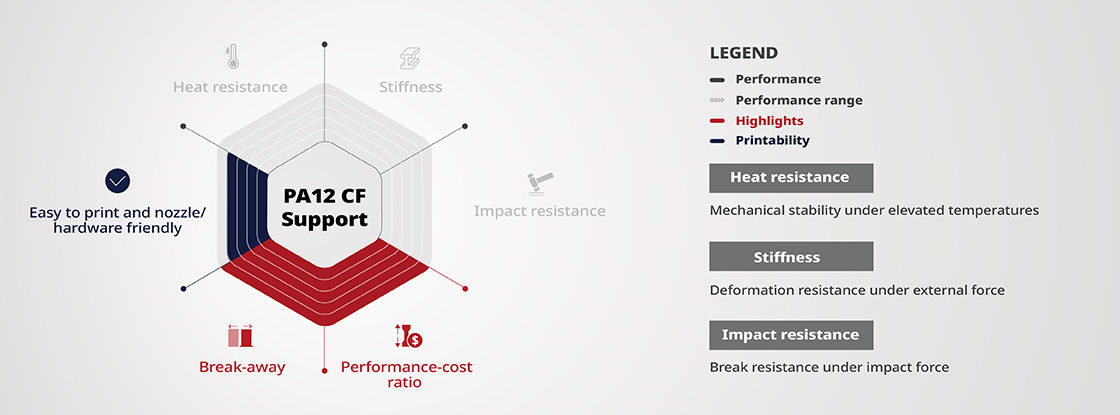

Benefits

  • Easy Break-away
  • Easy to Print
  • High Performance-cost Ratio

PA12 CF Support Filament Benefits

PA12 CF Support Technical Data Sheet PA12 CF Support Safety Data Sheet

Printing Guide

Recommended Print Settings

Nozzletemperature_icon
Nozzle temperature (°C)
280℃-290℃
Bedtemperature_icon
Bed temperature (°C)
60-80℃
Layerheight_icon
Layer height (mm)
0.1-0.25 mm
Printingspeed_icon
Printing speed (mm/s)
30-120 mm/s
Coolingfan_icon
Cooling fan
30%-50%
Dryingtemperature_icon
Drying temperature (°C)
80℃ for 6-8h

Printing Notifications:

  • It is recommended to use hardening steel nozzle, tungsten steel or ruby nozzle to avoid nozzle abrasion.
  • PA12 CF Support is sensitive to moisture and should always be stored and used under dry conditions (relative humidity below 20%).
  • Dry PA12 CF Support in the oven at 80°C for 6-8 hours before printing.

For Raise3D Printer Users:

Choose the best 3D printer to start your printing journey with PA12 CF Support. Find E2CF, RMF500.

For ideaMaker Users:

The printing profile for PA12 CF Support will be available soon on ideaMaker IO. Please download the latest version of ideaMaker.

PA12 CF Support

Find out more in our OFP section

Raise3D OFP
