3D Printing Layer Height: Definition, Importance and Relationship with Nozzle Size

Achieving high-quality results in 3D printing starts with getting the layer height settings just right. This parameter plays a significant role in determining both the precision and the speed of your print.

Layer height refers to the thickness of each layer your 3D printer lays down, and mastering this concept is key to optimizing your printing process.

In this article, we’ll talk about how layer height affects the final product and why it’s essential for ensuring your prints meet both aesthetic and functional standards.

What Is Layer Height in 3D Printing?

Layer height, in the context of 3D printing settings and parameters, is the thickness of each layer that the printer deposits during the printing process. It is a setting that can dramatically alter the print’s appearance, quality, and structural properties.

Typically, 3D printing layer heights range from 0.1 mm to 0.5 mm, depending on the printer and nozzle used. Adjusting the layer height can either speed up the printing process or improve the fine details and surface smoothness of the final print.

How is Layer Height Measured?

Layer height is typically measured in microns, with one micron equating to 0.001 mm. The most common layer heights for 3D printing are between 0.1 mm and 0.5 mm, but this can vary depending on the printer model and specific project requirements. Precision is key here, as even small adjustments to the layer height can significantly affect print time and quality.

Why Does Layer Height in 3D Printing Matter?

Layer height is one of the most significant factors in 3D printing because it directly impacts both the print time and the vertical resolution of the final object. By adjusting the layer height, you control how much material is deposited per layer, which determines the smoothness of the surface and the level of detail that can be achieved.

Thinner layers offer higher resolution and finer details, while thicker layers reduce printing time but can result in more visible layer lines. In most cases, choosing the right layer height for your project involves balancing these trade-offs between speed, quality, and material usage.

How Does Layer Height Affect Structural Strength in 3D Printing?

The relationship between layer height and structural strength in 3D printing is complex. While thicker layers can increase durability in some instances, layer height alone is not the primary factor influencing strength.

Instead, material choice, temperature, and the number of perimeters or walls play a much larger role in determining the final strength of a printed part.

For example, thicker layers can sometimes reduce the bond strength between layers, leading to weaker structures. However, this effect can vary based on the material and printing technique.

A study on PLA parts using higher layer heights showed a reduction in strength, yet other experiments suggest that thicker layers can increase strength under specific conditions.

Therefore, it’s important to consider layer height along with other factors like infill patterns, perimeters, and material properties when optimizing for strength in 3D printing.

How Does Layer Height Influence Printing Speed?

Layer height directly affects 3D printing speed and total print time by determining how many layers are required to complete the object. A lower layer height means that the printer has to create more layers, increasing the overall time required to finish the print.

For example, if you are printing at 0.1 mm layer height, it will take longer compared to printing the same object at 0.3 mm, because the 0.1 mm setting requires three times as many layers.

However, layer height itself does not change the printhead speed in moving across the X and Y axes; it simply changes the number of layers stacked along the Z axis.

In practice, thicker layers allow you to complete a print faster by reducing the number of layers needed, which makes a significant difference for large prints or when fast production is a priority.

What Is the Impact of Layer Height on Aesthetic and Print Quality?

Layer height has a direct influence on the aesthetic quality of a 3D-printed object. Thinner layers generally result in better surface finish and smoother curves, particularly on complex or rounded surfaces.

This is because thin layers produce less visible “stepping” on curved areas, leading to a more natural, continuous appearance. For objects requiring high detail or a polished finish, using a lower layer height, such as 0.1 mm, is ideal.

However, thinner layers can also introduce more opportunities for printing errors, especially during the initial layers. Using a thicker first layer can help improve layer adhesion, while subsequent thinner layers can refine the surface details.

For prints that feature straight lines or flat surfaces, a thicker layer height can reduce the print time without compromising on visual quality. Therefore, choosing the right layer height depends on the complexity of the design and the desired surface finish.

Does Layer Height Affect Flow in 3D Printing?

Yes, layer height affects the flow of material during 3D printing. The flow rate of the material must be carefully adjusted to match the chosen layer height. Thicker layers require a higher flow rate to deposit more material, while thinner layers require less.

Incorrect adjustments in flow can lead to issues such as under-extrusion, where not enough material is deposited, or over-extrusion, which can cause printing errors like blobs or stringing. Therefore, setting the flow rate appropriately for the selected layer height is essential for achieving high-quality prints without defects.

How Does Layer Height Influence Parts with Curves and Angles?

Layer height significantly influences the appearance of parts with curves and angles. Thinner layers provide better resolution along the Z axis, which is crucial for creating smooth, curved surfaces.

With thick layers, the “stepping” effect becomes more noticeable, particularly on angled or curved areas, leading to a less refined finish. For complex geometries with detailed curves, using a lower layer height allows for better visual quality and a more precise final product.

However, using thin layers for every part of the model may increase the printing time significantly, so it’s important to weigh the benefits against the extra time required.

How Does Layer Height Influence 3D Printing Post-Processing?

Layer height plays a significant role in the amount of post-processing required after 3D printing. Thicker layers often leave more pronounced layer lines, which may necessitate additional sanding, smoothing, or painting to achieve a refined surface. Conversely, prints made with thinner layers generally require less post-processing since the surface finish is already smoother, especially on curved and angled parts.

However, thinner layers increase print time, and while post-processing is reduced, the overall project timeline may still be extended due to longer print times. For prints that require minimal post-processing, selecting the right layer height is crucial for reducing the manual work involved after printing.

What Are the Typical Layer Heights for the Different 3D Printing Technologies?

Different 3D printing technologies and models have varying optimal layer heights depending on the nozzle diameter, printing process, and material being used. Understanding these ranges can help you achieve the best print quality while balancing factors like print speed and surface finish.

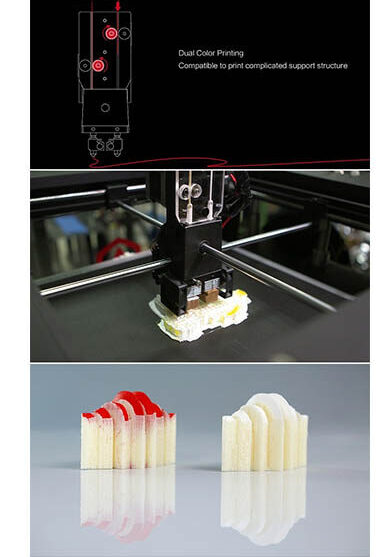

• Fused Filament Fabrication (FFF): FFF printers, including popular models like the Raise3D Pro2 and Pro3 Series, typically use layer heights between 0.1 mm and 0.3 mm for standard prints. These advanced printers can reach a layer height as low as 0.05 mm for high-detail work or as high as 0.6 mm for faster prints with thicker layers. FFF printers work with nozzle diameters ranging from 0.2 mm to 1.0 mm, which influences the layer height and the amount of material deposited.
• Stereolithography (SLA): SLA printers use a different method where a laser cures resin layer by layer. The layer heights typically range from 0.025 mm to 0.1 mm. SLA is known for its high precision, and the thinner layers are ideal for creating highly detailed prints, though they increase print time. The choice of layer height depends on the detail required, with thinner layers providing better resolution but longer print times.
• Selective Laser Sintering (SLS): In SLS printing, a laser sinters powder materials to create layers. The typical layer height for SLS printers is between 0.1 mm and 0.15 mm. The technology is well-suited for complex geometries and functional parts, as it provides good strength and detail without needing support structures during printing.
• Digital Light Processing (DLP): Similar to SLA, DLP printers use light to cure resin layers. The typical layer heights range from 0.025 mm to 0.1 mm. Advanced models like the Raise3D DF2 Resin DLP Printer can achieve heights from 0.05 mm to 0.1 mm. DLP is used for detailed prints where a smooth finish is important, but, like SLA, thinner layers lead to longer print times.
• Multi Jet Fusion (MJF): MJF printers use a fine powder and fusing agent to create parts layer by layer. The typical layer heights for MJF range from 0.08 mm to 0.1 mm. This technology is particularly effective for producing durable, functional parts with good surface quality, even with these thicker layers.

What is the Relationship Between Layer Height and Nozzle Diameter?

Generally, the layer height should be proportional to the nozzle diameter. A good rule of thumb is that the layer height should be between 25% to 75% of the nozzle diameter. Setting the layer height above this ratio can lead to poor print quality, as the layers might not adhere well or could cause visible layer lines.

For example, with a 0.4 mm nozzle, the optimal layer height typically ranges between 0.1 mm and 0.3 mm. This ratio ensures good layer adhesion while balancing detail and print speed.

A smaller nozzle allows for finer details and thinner layers, improving surface finish and resolution. However, smaller nozzles increase the print time, as more layers are required to complete a print.

On the other hand, a larger nozzle allows for thicker layers and faster prints but may compromise the level of detail and finish quality.

The nozzle diameter also influences how much material is extruded, which directly impacts layer thickness.

As nozzle diameter increases, the extrusion width (line width) expands, allowing thicker layers but requiring adjustments to printing parameters to maintain quality.

What Is a Good Layer Height for 3D Printing?

Generally, a layer height between 0.1 mm and 0.2 mm works well for most prints, providing a good trade-off between detail and printing time. Going below 0.1 mm often results in minimal improvement in quality, especially for standard FDM (fused deposition modeling) printers, while drastically increasing print times. A layer height of 0.07 mm or 0.05 mm is rarely recommended unless you need extreme detail for small parts, as the extended time may not justify the minor increase in quality.

What Is the Lowest Layer Height for 3D Printing?

The lowest layer height achievable for most consumer 3D printers is around 0.05 mm. This setting is typically used in resin-based printers like SLA or DLP rather than FFF printers, which have a limit on how fine they can print. While a 0.05 mm layer height produces highly detailed and smooth prints, it also significantly increases the total print time due to the number of layers required.

For FDM printers, the minimum layer height usually ranges from 0.1 mm to 0.05 mm, depending on the printer’s specifications. However, printing at the lowest layer height is only recommended for parts where high precision and surface finish are crucial, as the print time grows exponentially.

What Is the Layer Height Tolerance for 3D Printing?

Layer height tolerance in 3D printing refers to the range of layer thicknesses that a printer can achieve while maintaining print quality. This tolerance is critical for determining the smoothness of the printed object and the level of detail it can offer.

For most FDM printers, layer heights typically range between 0.1 mm and 0.3 mm. However, some advanced FDM printers can go as low as 0.05 mm for increased detail.

The layer height tolerance depends on factors such as nozzle diameter relate with other factors. For example, a standard 0.4 mm nozzle can handle layer heights from 0.1 mm to 0.32 mm. Deviating too far from the recommended range may result in poor layer adhesion, visible layer lines, and a decrease in print quality.

What Does Changing Layer Height Do in 3D Printing?

Changing the layer height in 3D printing directly affects both print quality and time. Using thicker layers—say, above 0.2 mm—can significantly reduce the printing time, as fewer layers are needed to build up the final print. However, this also means more visible layer lines and less surface detail, which may impact the final appearance.

On the other hand, reducing the layer height to around 0.1 mm or lower can greatly improve the vertical resolution, giving smoother finishes and more detailed features. This is particularly useful for curved surfaces, as thinner layers reduce the stair-stepping effect.

Keep in mind, though, that thinner layers increase print time, as more layers are required to complete the object. It’s a trade-off between speed and quality, but layer height only affects the vertical resolution, not the XY plane. For higher resolution in XY, using a smaller nozzle diameter might be the better choice.

How to Choose the Right Layer Height for Your Project?

Choosing the right layer height for your project depends on various factors that directly affect the quality, cost, and time required for printing. The best choice often involves a balance between speed and detail, depending on your part’s design and purpose. Here are six key considerations to help guide your decision:

• How detailed does the part need to be?If precision and fine details are critical, choose thinner layers (e.g., 0.1 mm). This results in a smoother finish, especially for curved surfaces, but will increase print time.
• Does your part have holes, curves, or angles?Parts with complex geometries, such as curves or angled surfaces, benefit from lower layer heights to reduce visible layer lines and improve overall appearance.
• How quickly do you need the print?If time is a priority, opt for a thicker layer height. A layer height of 0.2 mm or higher will speed up the process, though it may sacrifice some surface smoothness.
• Is surface smoothness important?For a polished finish, thinner layers are essential. Thicker layers are more likely to leave visible lines, though post-processing techniques can mitigate this.
• Are aesthetics or functionality more important?If the function of the part matters more than its appearance, go with a higher layer height. This approach not only speeds up the print but also improves mechanical properties, making the part more robust.
• Will you be post-processing the part?If you’re planning to smooth or finish the part afterward, the initial layer height becomes less critical. Thicker layers can be used without significant impact on the final appearance.

How to Optimize and Adjust Layer Height in 3D Printing?

Optimizing layer height in 3D printing plays a crucial role in balancing print speed, surface quality, and mechanical properties. Here’s how you can adjust layer height on common 3D printers to achieve the best results:

• Balancing Print Time and Detail: The relationship between layer height and print time is straightforward: taller layers reduce print time but make the layer lines more visible. For example, if you opt for a layer height of 0.20 mm instead of 0.10 mm, your print will be faster, but the details will be less refined. Sticking to a height of 0.10 mm generally offers a good balance between quality and time, as thinner layers below this threshold provide only marginal improvements while significantly increasing print time.
• Maximum Layer Height Limitations: The general rule is that your layer height should not exceed 80% of your nozzle diameter. For instance, if you have a 0.4 mm nozzle, your maximum layer height should be about 0.32 mm. Exceeding this ratio can lead to poor layer adhesion and reduced print quality. Keeping within this range ensures that the material is deposited properly and bonds between layers are strong.
• Layer Height and Vertical Resolution: While reducing layer height improves the vertical (Z-axis) resolution, it doesn’t affect the horizontal (XY-plane) resolution. If you’re aiming for finer details in the XY plane, switching to a smaller nozzle diameter is the solution. Adjusting layer height alone will not enhance the sharpness of features such as thin walls or detailed edges.
• Using Variable Layer Height: Some advanced 3D printers offer variable layer height options, which automatically adjust layer thickness based on the complexity of the part. For example, thinner layers can be used for detailed areas, while thicker layers handle less intricate sections. This approach can significantly reduce print time while maintaining high-quality details where needed.
• Perimeter Optimization for Strength: The number of perimeters in a print influences the part’s strength more than the infill. Increasing the number of perimeters (walls) improves structural integrity, with a minimum of two generally recommended. For parts that need additional strength, increasing perimeters is more effective than increasing the infill percentage.
• Spiral Vase Mode for Seamless Prints: If you’re printing thin-walled objects, Spiral Vase mode is a great option. This mode prints in a continuous spiral, creating single-perimeter walls without visible seams or weak points. It’s particularly useful for aesthetic pieces, as it eliminates the scar that occurs when the printer moves from one layer to the next. Just note that Spiral Vase mode is best suited for parts with consistent wall thickness.
• Wall Thickness and Perimeter Calculation: Adjusting wall thickness is essential for achieving the desired surface quality. The number of perimeters and the layer height should be carefully balanced. For example, a thicker wall with more perimeters will result in a sturdier object with a smoother finish, while thinner walls with fewer perimeters may compromise strength and appearance.
• Solid Layers for Strong Top and Bottom Surfaces: To ensure strong and smooth top and bottom surfaces, use at least three solid layers. For prints using lower layer heights, increasing the number of solid layers ensures that the overall thickness and strength of these surfaces are maintained.
• Seam Positioning for Better Aesthetics: You can control where the seam appears by adjusting the perimeter start point. Aligning the seam along an edge or scattering it randomly can reduce its visibility. This is particularly useful for objects where aesthetics are a priority, as a visible seam can affect the overall appearance.

First Layer Height Adjustments

Adjusting the first layer height is crucial for better adhesion and overall print success. A thicker first layer, such as 0.20 mm, can significantly improve how well the print adheres to the bed, especially when printing with thin layers like 0.10 mm. This helps avoid warping and ensures the print stays securely in place throughout the process.

When increasing the first layer height, recalibrating your printer may be necessary to ensure that the new layer height settings are applied accurately.

For example, with smaller layer heights, such as 0.10 mm, using a thicker first layer helps to offset adhesion issues while still allowing the rest of the print to achieve finer details.

Proper calibration is key because failing to do so might lead to uneven prints or poor layer adhesion. Always double-check your settings after adjusting to avoid these issues and ensure consistent print quality.

What is the First Layer Height of a 0.4 mm Nozzle?

When using a 0.4 mm nozzle, the recommended first layer height typically ranges from 0.20 mm to 0.32 mm. Keeping the first layer height within this range improves bed adhesion and print stability.

Going beyond 0.32 mm may result in poor bonding between layers and reduce overall print quality, while lower first layer heights can improve detail but might reduce bed adhesion.

Using Variable Layer Height for Enhanced Print Quality

Advanced slicers allow you to adjust layer heights dynamically throughout the printing process. This feature helps balance print time and quality by changing the layer height based on the level of detail required in different sections of the object.

For example, you can use thicker layers for less intricate areas to speed up the printing process, while thinner layers are applied to more detailed sections like curves and overhangs. This approach improves overall efficiency without compromising print quality where it matters most.

By adjusting the layer height in specific parts of the model, you can reduce print times significantly while still maintaining high precision in key areas. Most slicers have the option to enable this function, which automates the process of optimizing layer height based on the design’s complexity, ensuring a smoother finish on curved surfaces and fewer visible layer lines.

What Are Reasons to Adjust Layer Height?

Adjusting layer height is necessary for several reasons, depending on the project and desired outcome. Here are five considerations for making adjustments:

• Detail and Precision: Thinner layers, typically around 0.10 mm, are ideal when you need high detail or smoother surfaces. This is especially important for parts with curved surfaces or intricate features.
• Print Speed: Larger layer heights reduce print time, which is crucial for larger prints or when deadlines are tight. Thicker layers, such as 0.3 mm, can drastically shorten print time.
• Strength and Durability: Thicker layers tend to create stronger prints by improving layer adhesion. If you need a durable part, opting for a higher layer height can increase structural integrity.
• Post-Processing: If you plan to smooth or finish the object later, you can use a higher layer height without worrying too much about visible lines, as post-processing will improve the final appearance.
• Nozzle Compatibility: Your nozzle diameter limits how thick your layers can be. A good rule is to keep your layer height between 25% and 75% of the nozzle diameter to maintain print quality.

How to Avoid Common Pitfalls in Layer Height Settings?

When setting layer heights in 3D printing, several common mistakes can negatively affect your print quality and overall success. Five key points to avoid are:

• Using an Inappropriate Layer Height for the Nozzle Size: Make sure your layer height doesn’t exceed 80% of the nozzle diameter. A 0.4 mm nozzle should have a maximum layer height of 0.32 mm. Anything more will cause poor layer adhesion and visible defects.
• Choosing a Layer Height That’s Too Low: While thinner layers can offer more detail, going below 0.1 mm often provides minimal improvement in print quality while drastically increasing print time. For most prints, a standard layer height of around 0.1-0.2 mm strikes the right balance between speed and detail.
• Ignoring Print Time Trade-offs: Thinner layers take more time to print. If you’re not aiming for extremely high detail, opting for a thicker layer height will save significant time without much loss in quality.
• Not Adjusting the First Layer Height: A thicker first layer, such as 0.2 mm, helps with bed adhesion, especially when using smaller layer heights for the rest of the print.
• Overlooking Calibration: After adjusting layer height, recalibrate your printer to ensure the nozzle height and layer adhesion are optimal.

What Happens if Layer Height is Too Low?

When the layer height is too low, it significantly increases print time without much improvement in detail. Lower heights, like below 0.1 mm, might provide a smoother surface but often make little difference in final print quality, especially for parts without fine details.

Additionally, too low of a layer height can lead to over-extrusion, causing nozzle clogs or filament buildup, leading to poor print results and wasted material. A good rule is to keep layer height between 25% and 75% of the nozzle diameter for optimal results.

What Happens if Layer Height is Too High?

When the layer height is set too high, it negatively affects print quality. Large layer heights cause poor adhesion between layers, resulting in weak bonds that can lead to structural failure. Additionally, prints will display more visible layer lines, giving the final product a rough and uneven surface.

For example, setting the layer height above the recommended limit for the nozzle size will create gaps and reduce the overall strength of your part, compromising both appearance and functionality. It’s essential to stay within the suggested layer height range to maintain proper adhesion and print quality.

Conclusion

Understanding the relationship between layer height, print resolution, and structural integrity allows you to make more informed choices tailored to your design goals.

For highly detailed prints, opting for smaller layer heights is often the best approach, even though it may extend print time—it’s typically worth the extra effort. Striking the right balance between functionality and aesthetics is key.

Always factor in nozzle diameter, material type, and any post-processing requirements when determining the ideal layer height for your specific project.

Frequently Asked Questions

1. Is 0.1 Layer Height Good?

A 0.1 mm layer height is often considered a good choice for 3D printing when you need higher detail and smoother surfaces. It offers a good trade-off between quality and print time for most prints. However, for smaller and more intricate objects, even finer layer heights can be used to capture better details. Keep in mind that as you decrease the layer height, print time increases. If your part doesn’t require extremely fine details, using a larger layer height, like 0.2 mm, might save significant time while still maintaining acceptable print quality.
